Sliding door with black hardware set 76x205 cm ESG glass
How much stone do I need?
How much stone do I need for the ground?
For pebble and gravel:
• approximately 80kg per m², based on a 5cm layer.*For particle sizes >32mm, a thicker layer is required.
• Consumption per sack: 1000kg = 0.625m³.
• Coverage: approximately 12.5m² with a 5 cm layer.
For pine bark:
• approximately 70L per m², based on a 5cm layer.
• Consumption per sack: 1000L = approximately 1m³ = approximately 600kg
• Coverage: approximately 14m² with a 5 cm layer.
For volcanic, slate and chamotte:
• approximately 50kg per m², based on a 5cm layer.
• Consumption per sack: 1000kg = approximately 1m³
• Coverage: approximately 20m² with a 5 cm layer
How much stone do I need to fill a gabion?
Density of approximately 1,650kg per 1m³.
The calculation is very easy to understand with an example: if you have a gabion of 100x50x30 cm, you must do the following calculations:
1x0.5x0.3 = 0.15m³
0.15x1,650 = 247.50kg of stone.
*It is always a good idea to calculate an extra 5%, since when gabions are filled they expand a little and a little more stone always fits than in the theoretical calculations.
Clarifications
ATTENTION!
The grain sizes of GRAVELS AND pebbles are sieve sizes
The actual sizes may vary slightly, since when talking about, for example, 60-80mm stone, it means that the stones pass through an 80x80mm square mesh and do not pass through a 60x60mm one.
Through that 80x80 mesh, a stone 100mm long and 65mm wide can pass, so there may be a percentage of stones larger than 80 and smaller than 60mm.
Breakage of pebbles
On the other hand, in pebbles larger than 60mm, there is a percentage of up to 10% of stones that can break during sorting, washing, loading and unloading; to this day we do not have machinery that prevents such breakages.
In the photos you can see, only real products are shown; broken pieces have not been removed.
Dust and sand in the products
This product is not washed, so it contains dust, sand and even traces of other products due to processing and transport. This is not a problem when using it; the stone will wash itself over time or you can pour water on it before using it.

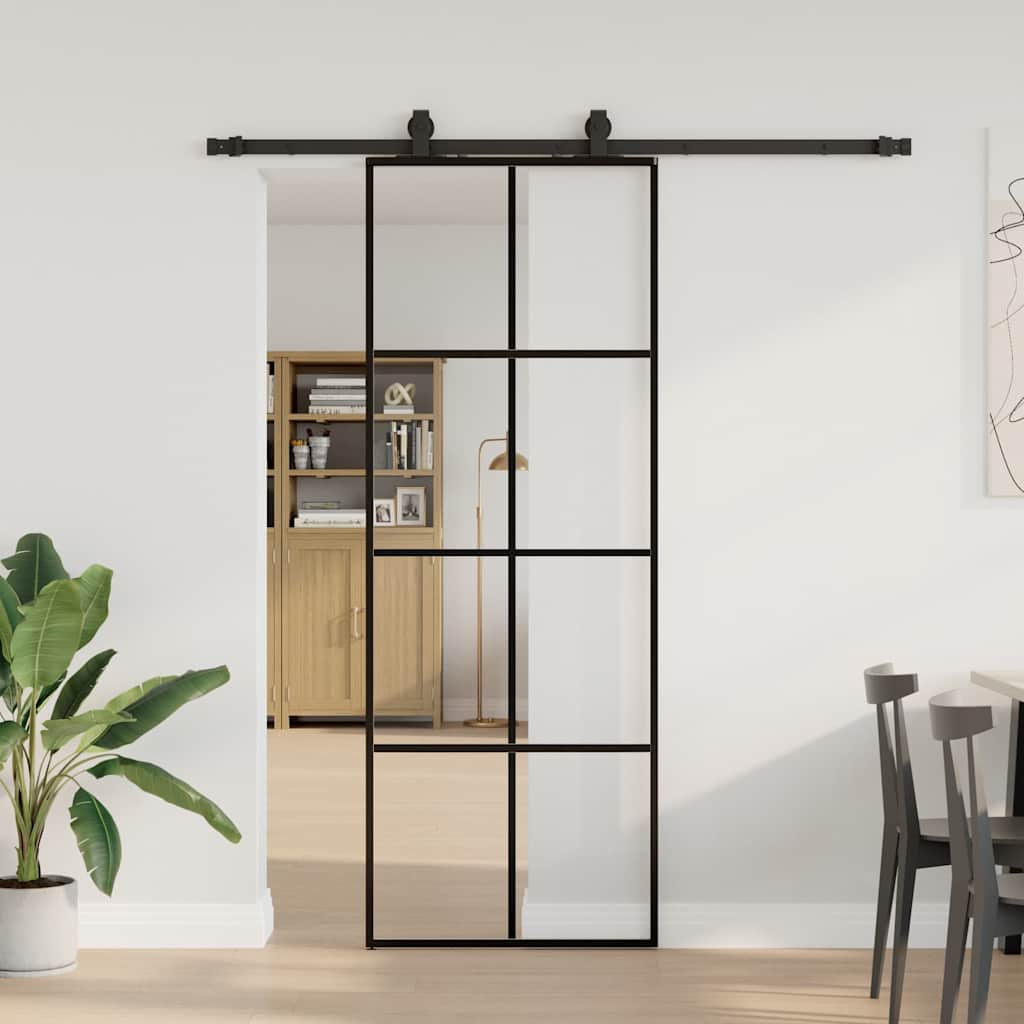

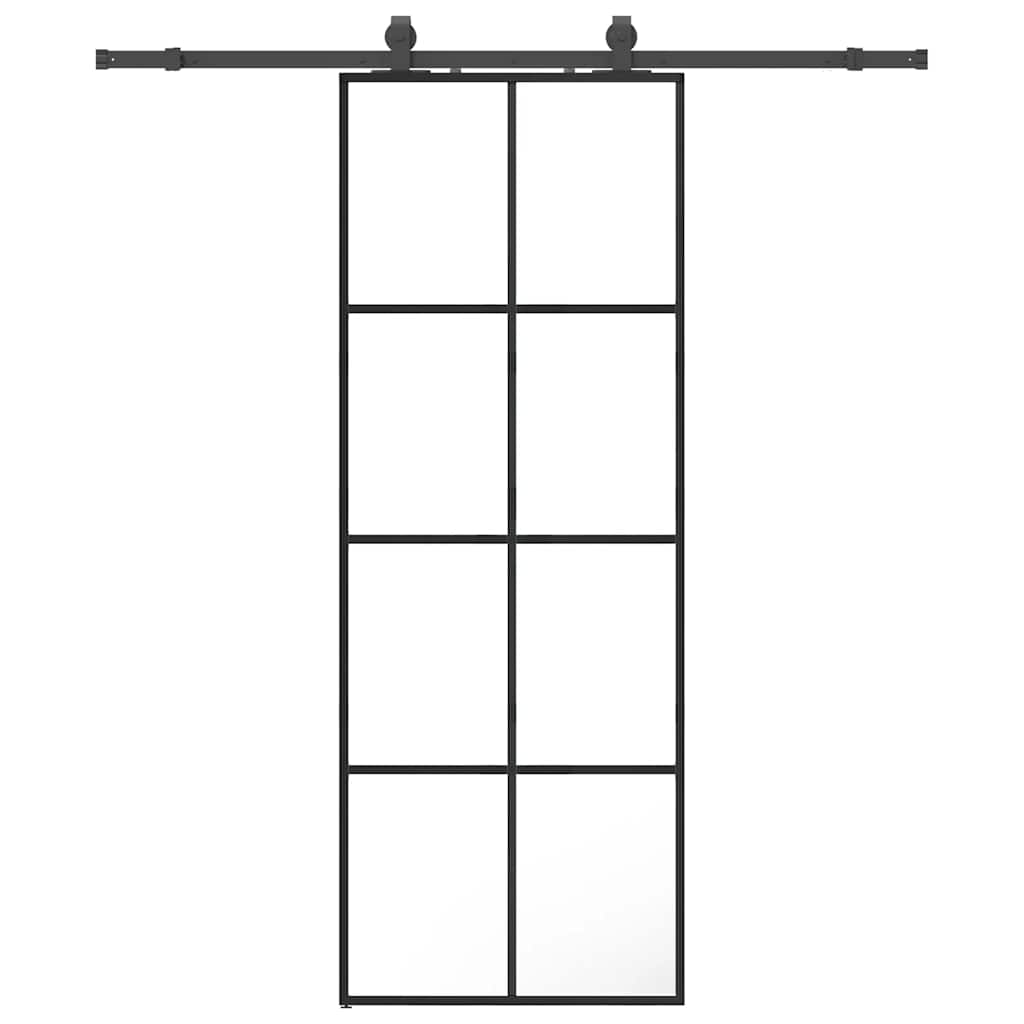

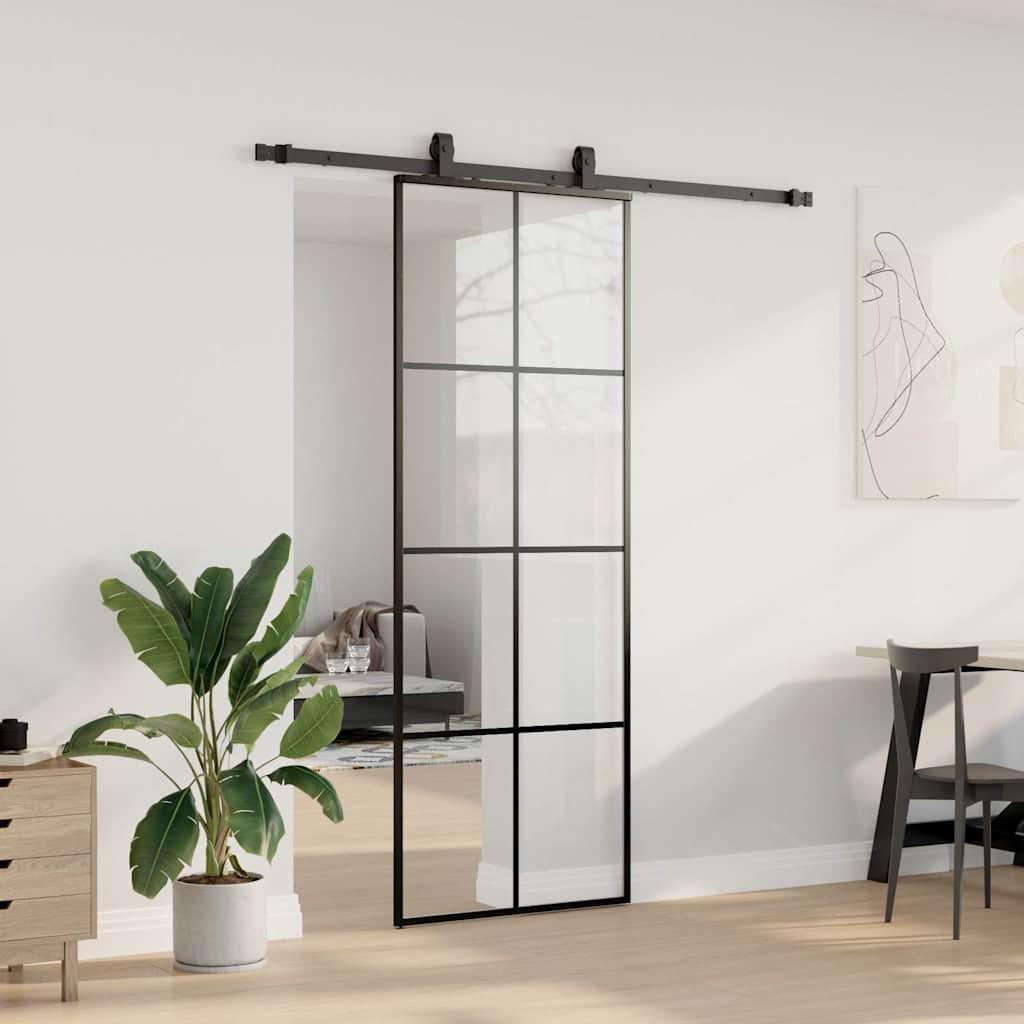

Sliding door with black hardware set 76x205 cm ESG glass
This sliding door is designed to enrich your home’s entryway and also ensure better security for your home. Durable material: thanks to its clever structure, ESG glass is stronger and more durable than any other glass. Tempered glass is known for withstanding heavy impacts, scratches, bumps, etc. Sturdy sliding rails: Steel is a very hard and strong material, offering solidity and stability. The powder coating on the steel creates a protective layer against wear and tear. Made of powder-coated steel, the sliding rails are robust, durable, and resistant. Smooth and quiet sliding: Thanks to the internal bearings, the interior sliding door will slide smoothly and quietly. Door stops are also included to prevent the rollers from derailing, while the rubber seals will cushion the impact of the rollers and reduce noise. Space-saving design: This sliding door saves space and looks more spacious. It is the first choice for a modern, simple home design with a pleasant atmosphere. Wide use: The barn sliding door can be installed on both wooden and concrete walls. It is ideal for use in the bedroom, kitchen, barn, garage, etc. Useful information:Good to know: For installation, you can refer to our installation guide for door and sliding door hardware kits.

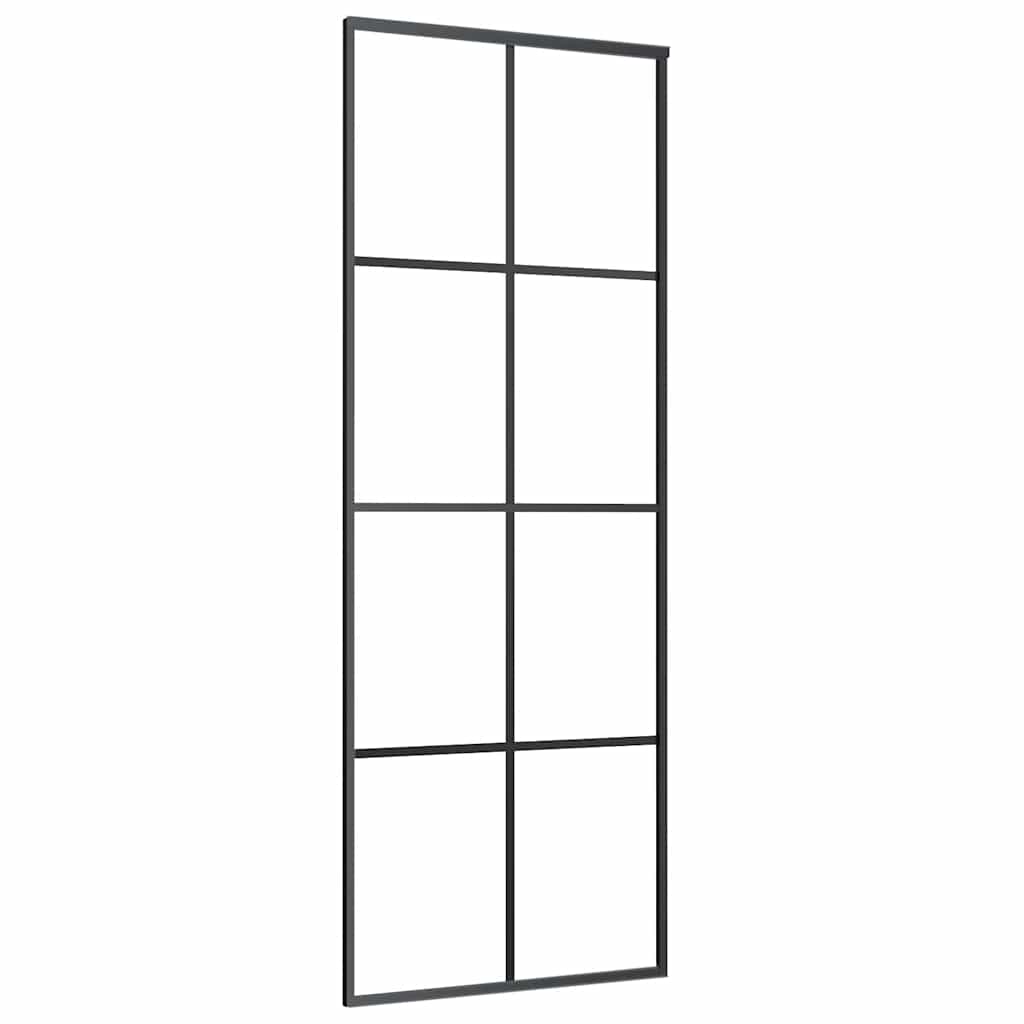

- Sliding door:
- Color: Transparent and black

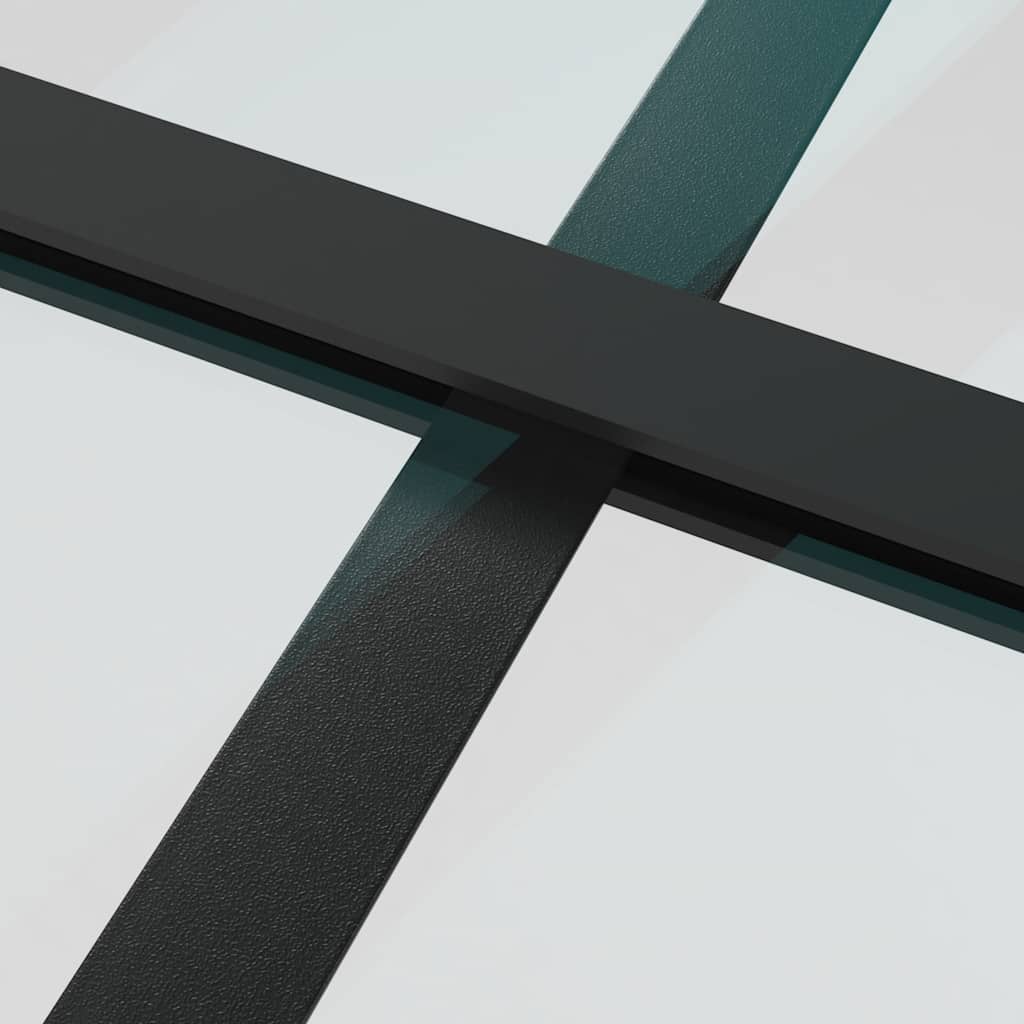

- Material: ESG glass, aluminum

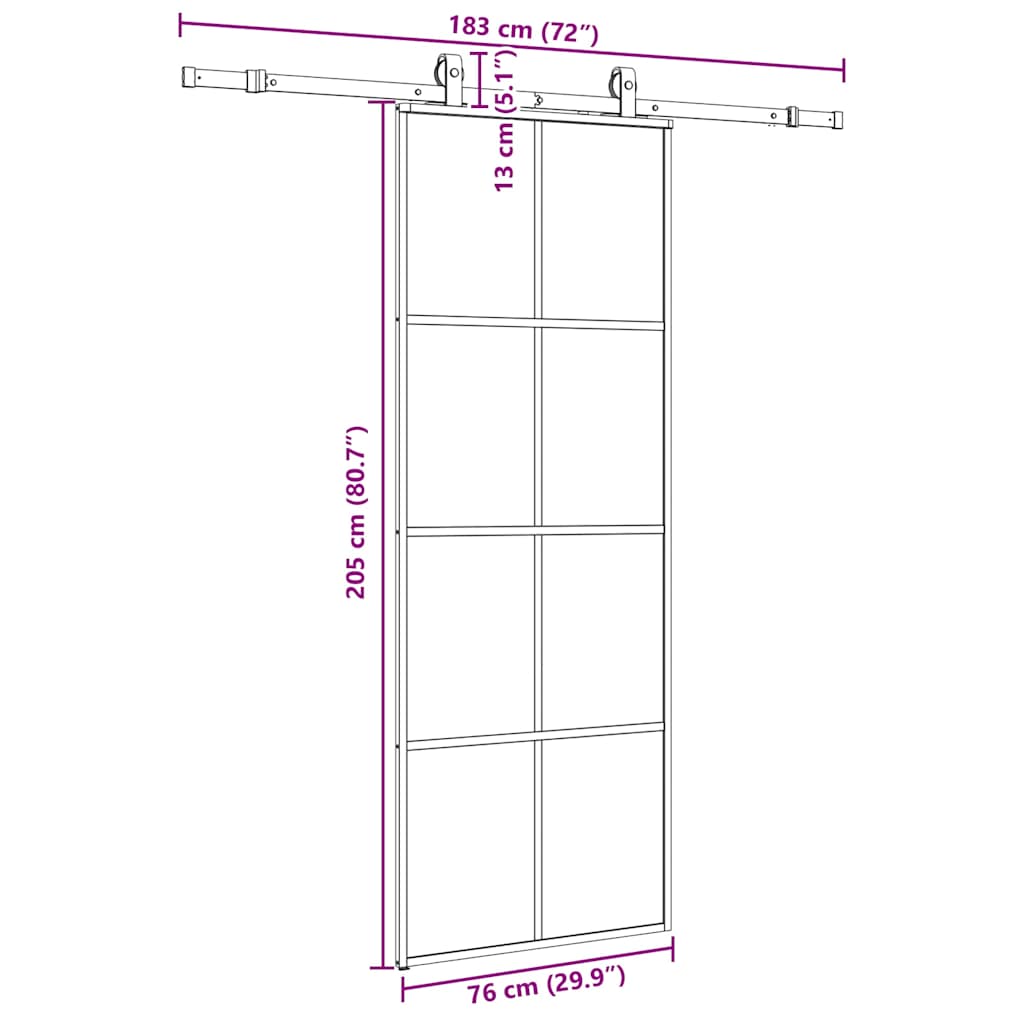

- Total size: 76 x 205 cm (W x H)
- Door thickness: 2 cm
- Glass thickness: 5 mm

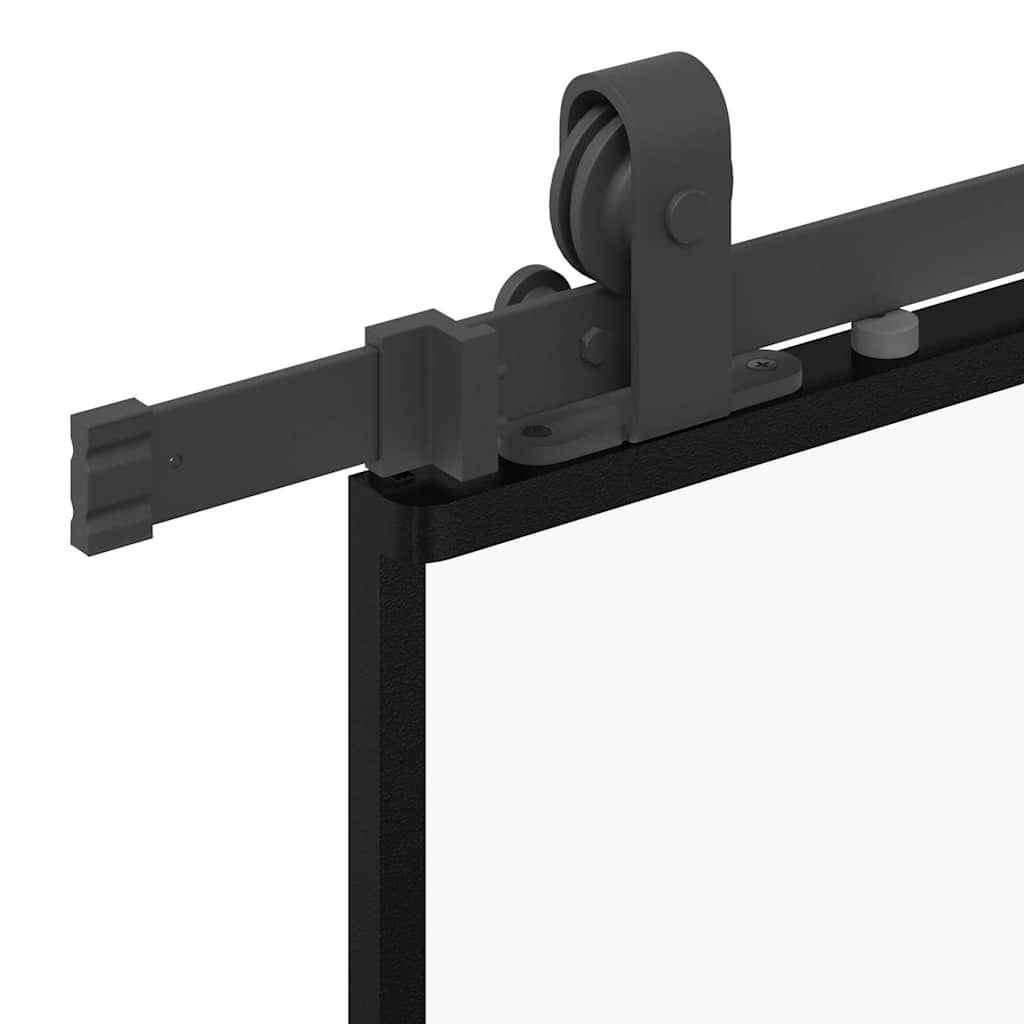

- Hardware kit:
- Color: Black
- Material: Powder-coated steel
- Total length of sliding guide: 183 cm
- Maximum weight capacity: 100 kg
- Suitable door dimensions: 91.5 cm wide, 35-45 mm thick
- Assembly required: Yes
- Delivery contains:
- 1 x Door
- 2 x Sliding rails
- 2 x Door stops
- 2 x Rollers
- 5 x Mounting clamps
- 1 x Floor guide
- Other necessary hardware
