Home Hermetic TOP Cover with Frame and Rubber Vetonek
Hermetic TOP Cover with Frame and Rubber Vetonek
8,53 €
8,53 €
Unit price
/
per
Tax included.
Shipping calculated at checkout.

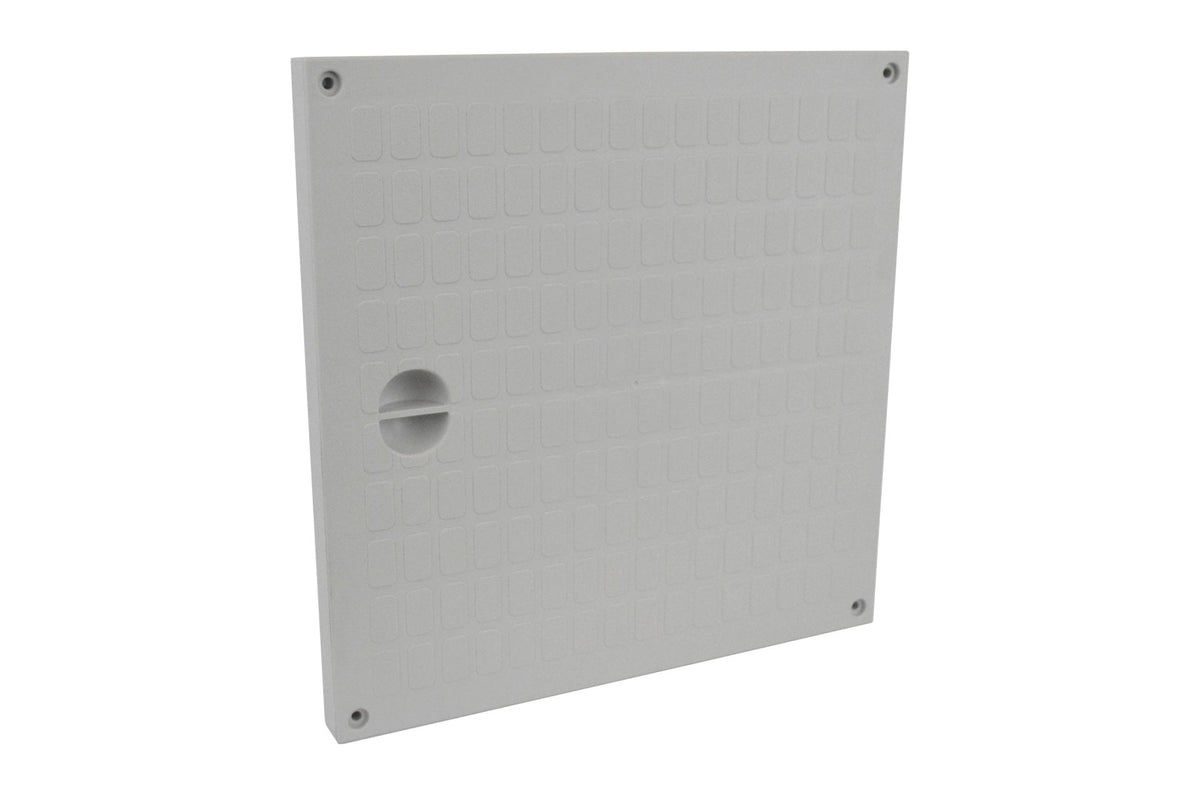

Hermetic TOP Cover with Frame and Rubber Vetonek Hermetic TOP cover with screws, polypropylene frame and sealing gasket, made of reinforced polypropylene copolymer with anti-UV protection (rubber gasket). The sealing gasket combined with the manhole chamber and the hermetic cover prevents any water infiltration . Cover, frame and gasket are sold separately — choose the component and size.
Technical sheet (cover + frame with screw)
Size
A
B
H1
C
H2
Breaking load
20x20 cm
23.2 cm
16 cm
3.8 cm
18.5 cm
2.9 cm
6.3 kN
30x30 cm
33 cm
25 cm
4.1 cm
28 cm
3.8 cm
14.4 kN
40x40 cm
43.9 cm
34.5 cm
4.4 cm
38 cm
4.2 cm
22.6 kN
55x55 cm
60.3 cm
47.6 cm
6.7 cm
53 cm
4.9 cm
44.4 kN
Gaskets: thickness 0.2 cm in all sizes.
