How much stone do I need?
How much stone do I need for the ground?
For shot and gravel song:
• ± 80kg per m², based on a 5cm layer.*For granulometries> 32mm a thicker layer is necessary.• Saca consumption: 1000kg = 0.625m³.
• Covering capacity: ± 12.5m² with a layer of 5 cm.
For pine cortex:
• ± 70L per m², based on a 5cm layer.
• Saca consumption: 1000L = ± 1m³ = ± 600kg
• Covering capacity: ± 14m² with a layer of 5 cm.
For volcanic, slate and chamota:
• ± 50kg per m², based on a 5cm layer.
• Saca consumption: 1000kg = ± 1m³
• Covering capacity: ± 20m² with a layer of 5 cm
How much stone do I need to fill a gabion?
Density of ± 1,650kg by 1m³.
The calculation is very simple to understand with an example, if you have a 100x50x30 cm gav. You have to make the following accounts:
1x0.5x0,3 = 0.15m³
0.15x1,650 = 247.50kg. stone.
*It is always good to calculate an extra 5%, since the gavions when filling them are a little and always enters some more stone than in the theoretical calculations.
Clarifications
ATTENTION!
Granulometries are sizes of sizes
Real sizes can vary slightly, since when talking, for example, 60-80mm stone, it means that the stones pass through a square mesh of 80x80mm. and do not go through a 60x60mm.
This 80x80 mesh can pass a 100mm stone. long and 65mm. wide so there may be a percentage of stones greater than 80 and less than 60mm.
Broken stones
On the other hand, in the stones of more than 60mm. There is a percentage of up to 10% stones that can be broken during classification, washing, loading and downloading, today we have no machinery that avoids those breaks.
In the photos you can see, only real products are seen, broken pieces have been removed.
Dust and sand in products
This product is not washed, so it contains dust, sand and even traces of other products due to processing and transport. This is not a problem when using it; The stone will be washed alone over time or can throw water before using it.
Stabilizer GEOCELDAS GRAVAS

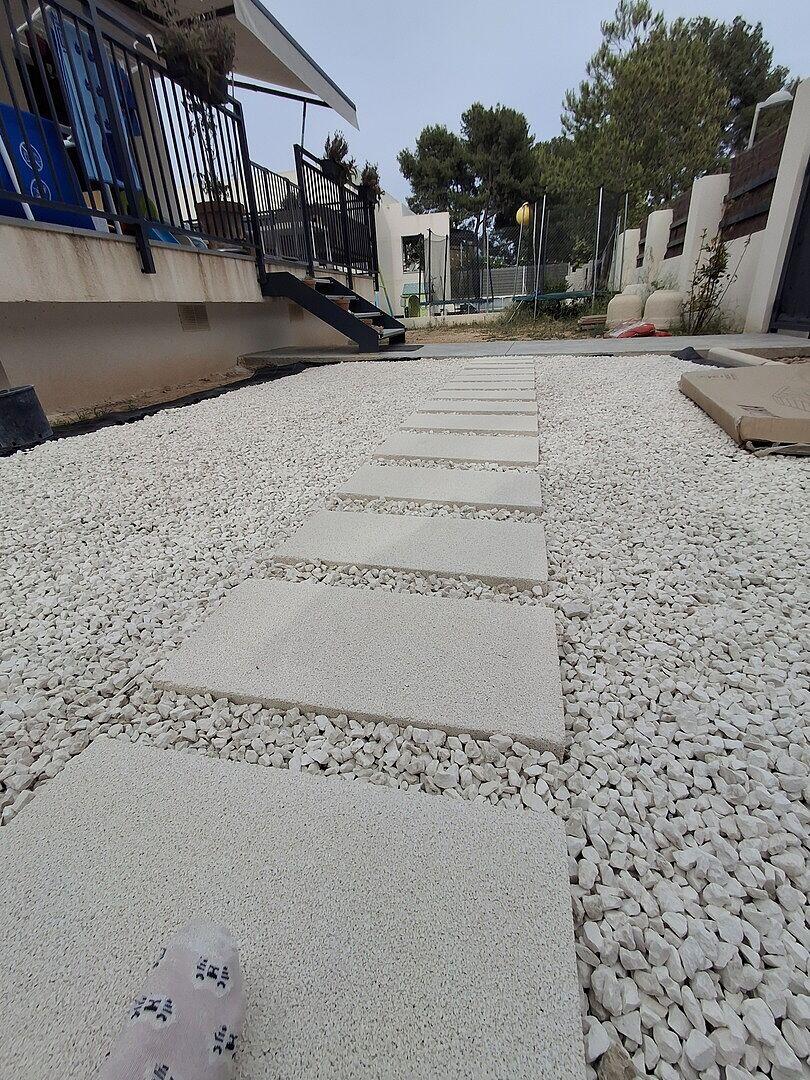

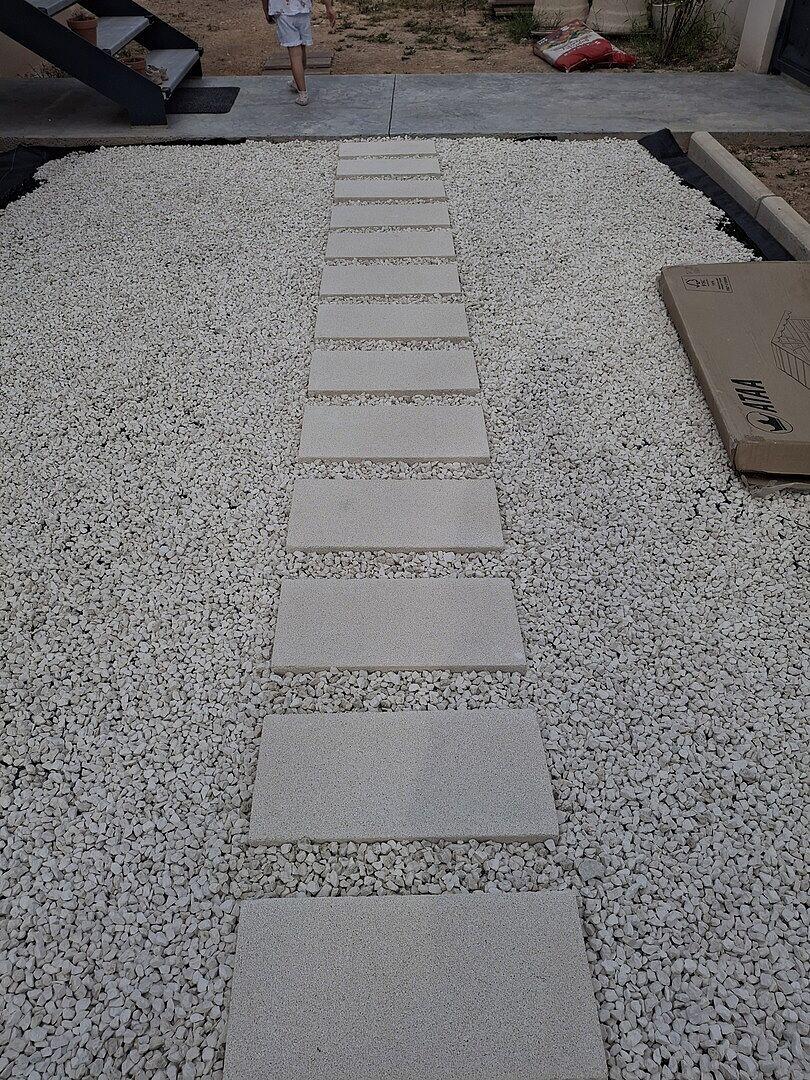

Get paths and paths made with natural gravels with the comfort of a concrete path. Comfortable to walk, for bicycles and even for wheelchairs but with the natural appearance of a gravel path.
CHARACTERISTICS STABILIZER GEOCELDS FOR GRAVES
Plates made of 100% recycled echo material.
50.5x58 cm modules with 5x5 cm and 3 cm high hexagonal geocells.
4 plates make up 1.17 m².
Supports up to 1,750 kN/m2 with gravel filling for temperatures from -50c to +50с.
Load class B125 up to 12,500kg with filling
The necessary amount of stone is obtained by calculating 60 kg. of gravel per m², it is recommended that it be gravel and not sing, to compacte better.
The ideal gravel size is of granulometry between 6 and 16 mm, any gravel within that range is valid.
Advantages of gravel stabilizer
- Easy placement, little effort.
- Affordable price, much more comfortable and practical garden roads.
- The pieces join in a very simple way thanks to the "click" tabs.
- Drenant roads, avoid the creation of the annoying puddles.
Rigid gravel stabilizer placement
Important!
Playing the gravel stabilizer is not excessively complicated but it is required to follow concrete steps, it is a matter of patience rather than skill.
- If the land in which you are going to place the stabilizer is earth or herbs can leave it is highly advisable to put a Antihierba mesh. We cut the mesh as space, stretch it well and hold it with fastening staples so that it does not move.

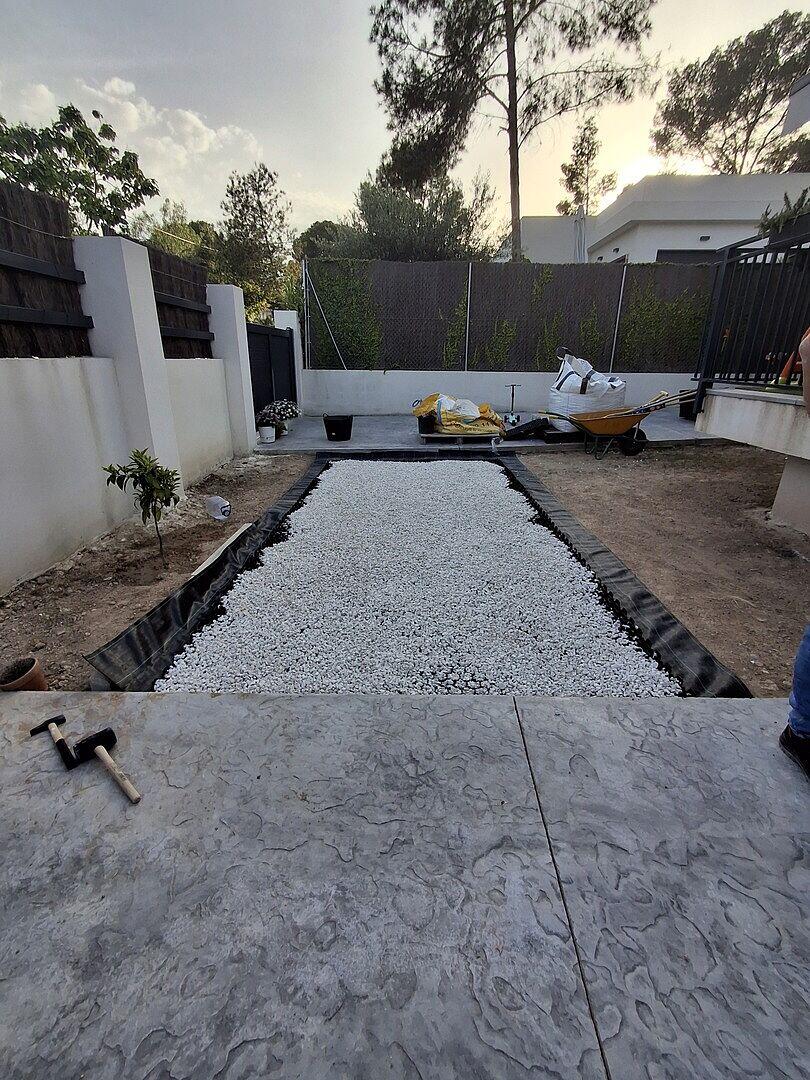

- Subsequently, we are placing the plates on the mesh and hold them all over the perimeter with staples until the entire surface stays perfectly.
- We begin to fill the cells with the gravel, fill a stretch first and then we can pour more gravel on that section and pushing it into empty cells. From this moment on, work is easier and faster.

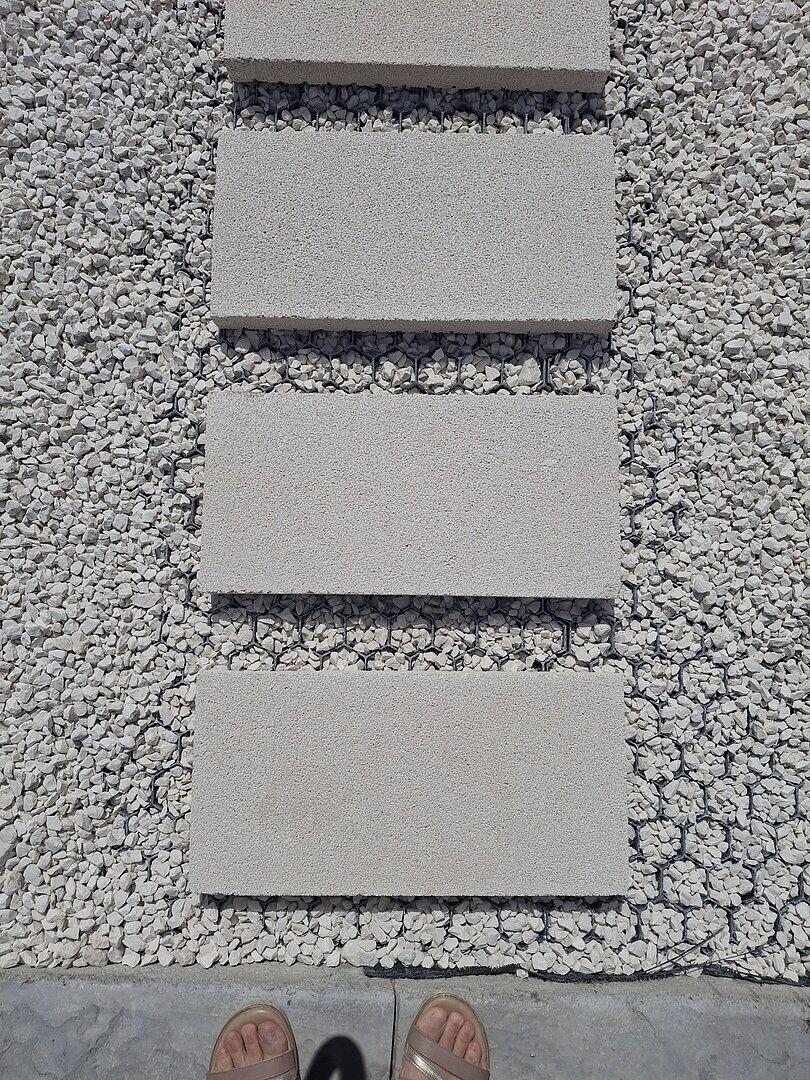

- Once we have the entire stabilizer, it is recommended to throw 5 mm more gravel, so that the stabilizer is not seen.
- It is recommended to step on the gravel, if we have a roller that weigh it would be perfect, but if we do not have one we can put a table and get on top to gradually step on the ground, in this way the gravel will be compacted very well and we will achieve the comfortable effect we are looking for.
If you do not know the product or you have doubt if you are going to place it well, we recommend asking for a single pack and try, the investment is not very large and the effect achieved once is placed is very pleasant and practical.
