Revoltón Canillas - Curved concrete infill block for rustic ceilings
Revoltón Canillas: the traditional wine cellar ceiling
The revoltón ceiling, that gentle vault between one beam and the next, is the classic look of traditional houses and wine cellars. The Revoltón Canillas delivers it with curved concrete pieces measuring 14 × 65 × 25 cm in five colors, which rest between beams or corbels and form the vaulted infill without formwork or plasterwork.
✅ Main advantages
Masonry vault: the curve comes ready-made: it rests between beams and the ceiling ends up vaulted.
Five colors: Arena, Blanco, Crema, Gris and Salmón, to match wooden or concrete beams.
Maintenance-free: it doesn't crack like plaster or need constant repainting.
Manageable 11 kg piece: quick, piece-by-piece installation.
Cheaper full pallet: 112 units at a better price per piece.
🏗️ Recommended applications
Rustic between-beam ceilings in homes and wine cellars
Porches and outdoor dining areas with exposed beams
Restoration of traditional revoltón ceilings
Decorative false ceilings over corbels
📋 Technical specifications
Material: decorative concrete
Dimensions: 14 × 65 × 25 cm
Weight per piece: 11 kg
Pallet: 112 units (≈ 1,255 kg)
Colors: Arena, Blanco, Crema, Gris and Salmón
Use: indoors and covered outdoor areas
🧰 Installation
Check the spacing between beams: the pieces must rest on both sides.
Set each revoltón between the beams and bed the ends in mortar.
Work in complete courses, aligning the curves.
Grout the joints and finish the junction with the beam.

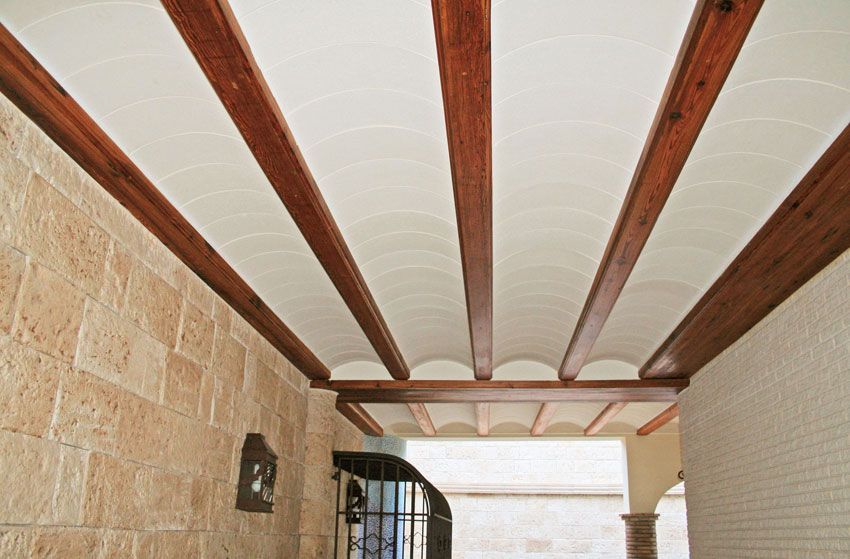

💡 Professional tip: combine the light-toned revoltón with wood-effect corbels: the contrast between the dark beam and the light vault is what gives the ceiling its traditional look.
Frequently Asked Questions
¿Qué es un techo de revoltón?
El entrevigado abovedado tradicional: pequeñas bóvedas entre viga y viga, típicas de casas antiguas, bodegas y porches rústicos.
¿Cuántas piezas necesito?
Cada pieza cubre 65 × 25 cm entre vigas. Calcula por vanos: largo del vano entre 25 cm, y tantas hileras como vanos tenga el techo.
¿Qué separación entre vigas admite?
La pieza mide 65 cm: las vigas deben dejar una luz que permita apoyar ambos extremos. Es el formato pensado para el entrevigado clásico de 60 cm aproximadamente.
¿Cómo se coloca?
Apoyada entre vigas o canecillos, recibiendo los extremos con mortero y avanzando por hiladas completas.
¿Puedo combinar colores con las vigas?
Sí: el contraste clásico es bóveda clara (blanco, crema, arena) con viga oscura imitación madera.
¿Sirve para exterior?
Sí, en espacios cubiertos: porches, aleros y merenderos.
¿Necesita mantenimiento?
No: no fisura como el yeso ni necesita repintados.
